Understanding Serializability in DBMS: Types & Examples

Understanding Serializability in DBMS: Types & Examples

Serializability in a Database Management System (DBMS) refers to a property that ensures the operations performed by different processes on shared data do not interfere with each other, and the final result is as if those operations were done one after another in a sequence.

In simple terms, when multiple processes are accessing or modifying data at the same time, serializability ensures that the system behaves as though the operations were executed in a specific order, without overlap or conflict. This is important to maintain the integrity and consistency of the data.

In MongoDB, for example, serializability is controlled using a technique called Two-Phase Locking (2PL). In 2PL, the database locks the data before any operation is carried out. Once the transaction is completed, the lock is released. This approach prevents conflicts between operations, making sure that different transactions view the database as if they were executed one after another, rather than simultaneously.

However, while 2PL provides strong guarantees of serializability, it can also cause performance issues. This is because acquiring and releasing locks adds overhead, which might slow down the system.

What is a serializable schedule?

A serializable schedule is a sequence of transactions in a database where even though the transactions might overlap or be interleaved, the final result is the same as if the transactions were executed one after another in some order. In simpler terms, a non-serial schedule is considered serializable if it produces the same outcome as a serial schedule, where transactions are executed one at a time.

Non-serial Schedule:

A non-serial schedule is when transactions are run simultaneously, potentially overlapping or switching places. These transactions might access or modify the same data, so it’s important to ensure that the database remains consistent even when transactions are not executed in a strict sequence.

Example:

Let’s say we have two transactions, Transaction-1 and Transaction-2, and they interact with data items “a” and “b”.

Transaction-1:

  • R(a) (Read a)
  • W(a) (Write a)

Transaction-2:

  • R(b) (Read b)
  • W(b) (Write b)
  • R(a) (Read a)
  • W(b) (Write b)

In this example, Transaction-2 starts before Transaction-1 finishes, and both are working on the same data (“a” and “b”). Here, Transaction-1 and Transaction-2 are overlapping and interleaving, so this is a non-serial schedule.

For the database to remain consistent, this non-serial schedule must be serializable, meaning the final outcome should be the same as if the transactions were executed one by one, in some order, without interference.

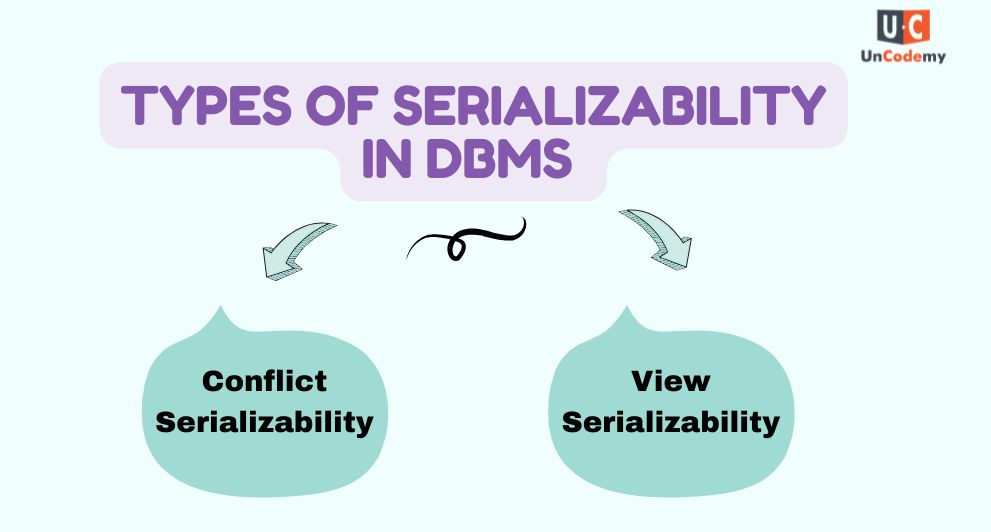

Types of Serializability in DBMS

Types of Serializability in DBMS

In DBMS, serializability ensures that even when transactions are executed concurrently, the database maintains consistency. If transactions are not serializable, it can lead to incorrect results. There are two main types of serializability: Conflict Serializability and View Serializability. Each type plays a unique role in managing how transactions are executed in a system to avoid inconsistencies.

Conflict Serializability

Conflict serializability is a method of scheduling transactions such that operations on the same data item are performed in a specific order to maintain database consistency. In this type, transactions are only allowed to be executed concurrently if there is no conflict between their operations.

For example:

  • Suppose there are two transactions: one updates the “customer” table and another updates the “order” table.
  • These transactions can only run concurrently if they don’t operate on the same data item.

The conditions for conflict serializability are:

  • The transactions must operate on different data items.
  • At least one of the operations must involve writing data.
  • If two transactions execute concurrently and affect the same data item, they must follow a strict order to prevent conflicts.

In conflict serializability, the goal is to ensure that the database remains consistent by ensuring that conflicting operations are executed in a serial order.

View Serializability

View serializability focuses on ensuring that the final result of transactions is the same as if they had been executed one after the other, even if the transactions are executed concurrently.

In this type, the primary goal is to ensure that the end result is consistent, even if the operations don’t follow the strict conflict rules. The main idea is that if two transactions don’t interfere with each other (i.e., they don’t operate on the same data item in a conflicting way), their execution can be considered serializable.

To better understand view serializability, let’s break it down using two schedules, S1 and S2, with transactions T1 and T2:

  • Condition 1: The same set of transactions must be involved in both schedules.
  • Condition 2: Both schedules should have an equivalent number of read and write operations. A difference in the number of reads doesn’t matter, but the number of writes must match.
  • Condition 3: The order in which transactions access the data must be the same in both schedules. If the order of writing a data item is different, the schedules are not considered equivalent.

Testing of Serializability in DBMS with Examples

Serializability in a DBMS ensures that even when multiple transactions are executed concurrently, the final result is as if they were executed one by one in a sequence. It makes sure that the database remains consistent, and the outcome of the transactions is correct, just as if they weren’t running at the same time.

Example:

Let’s consider two users, Sona and Archita, each executing two transactions:

  • Sona’s Transactions:
    • T1: Read A → Write A → Read B → Write B
    • T2: Read B → Write B
  • Archita’s Transactions:
    • T3: Read C → Write C → Read D → Write D
    • T4: Read D → Write D

Now, let’s check if this schedule of transactions is serializable.

For a schedule to be serializable, it must meet the conflict serializability property. This means that there should be no conflicts where two transactions are trying to access the same data at the same time in a way that could cause inconsistency.

In our example, T1 and T2 both access data item B. T1 reads and writes B, and T2 also reads and writes B. This causes a conflict because both transactions are trying to access and modify B at the same time, which can lead to inconsistent results. Therefore, this schedule does not meet conflict serializability.

However, there is another type of serializability called view serializability. This is a weaker property. It focuses on whether transactions can see each other’s updates. In our example, T2 cannot see the updates made by T4 because T2 and T4 are working with different data items (T2 works with B, and T4 works with D). Since the transactions do not share data, T2 doesn’t see T4’s changes, and the schedule is considered view serializable.

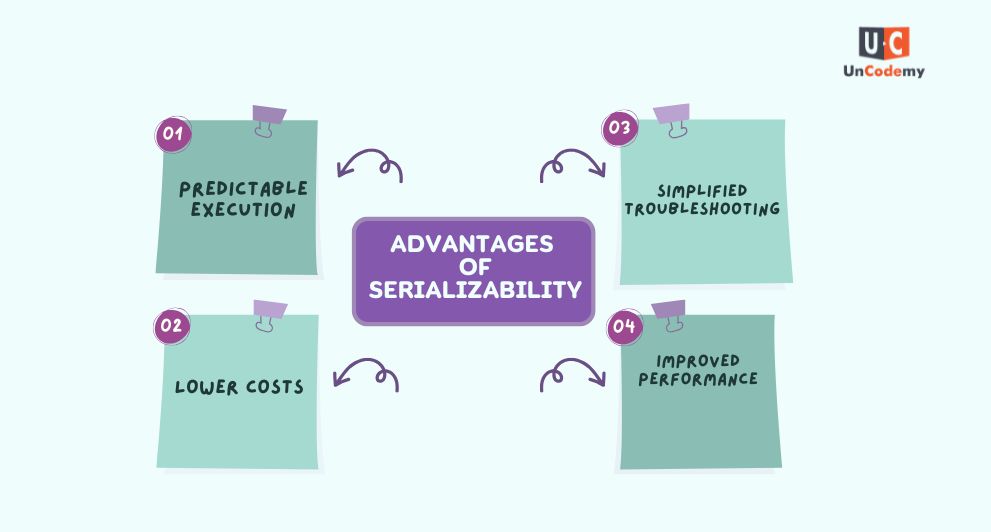

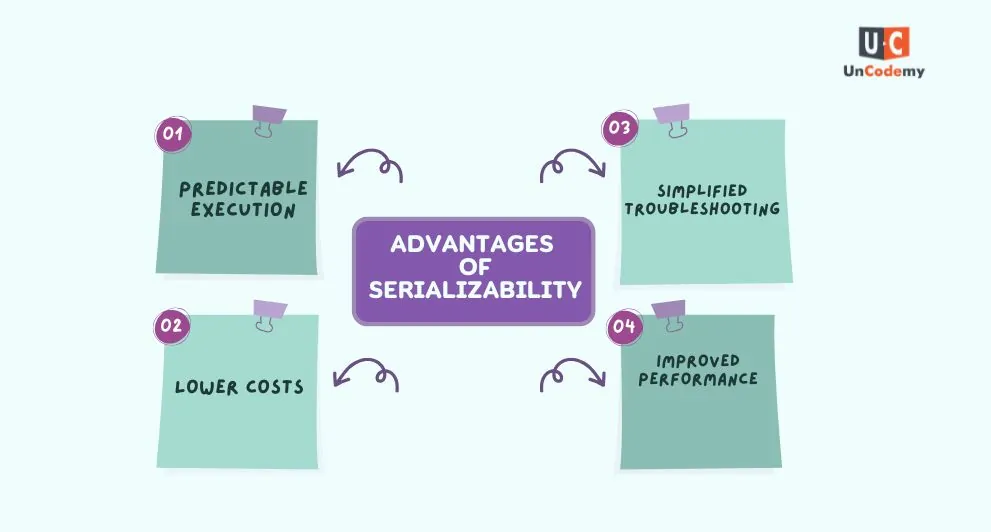

Advantages of Serializability

Advantages of Serializability

  1. Predictable Execution: With serializability, all transactions in the DBMS are executed in a controlled and predictable manner. There are no unexpected outcomes or surprises, and the database operates smoothly without data loss or corruption. Each transaction is executed as intended, ensuring all variables are updated correctly.
  2. Simplified Troubleshooting: Since each transaction is executed independently, it becomes easier to understand and troubleshoot individual database threads. This greatly simplifies the debugging process, as the concurrent execution of transactions does not create confusion or unexpected interactions between threads.
  3. Lower Costs: The serializable property can help reduce the hardware requirements for the database, as it minimizes the need for complex concurrency controls. Additionally, it can lower the costs involved in software development by streamlining the transaction management process.
  4. Improved Performance: Serializable executions give developers the ability to optimize their code for better performance. In many cases, this can result in faster execution compared to non-serializable schedules, as the predictable nature of serializability allows for more efficient code optimization.

Conclusion:

For a DBMS transaction to be considered serializable, it must adhere to the ACID properties (Atomicity, Consistency, Isolation, Durability). In DBMS, serializability exists in various forms, each with its own set of advantages and disadvantages.

Choosing the right type of serializability often involves balancing performance and correctness. Opting for the wrong form of serializability can lead to database issues that are difficult to detect and resolve.

Serializability in DBMS ensures the integrity of transactions by maintaining a consistent and reliable state of the database, even when multiple transactions occur concurrently. It guarantees that the outcome of concurrent transactions is equivalent to a serial execution, preserving data consistency. Attributes, on the other hand, represent the individual units of data within the database, such as columns in a table, which are directly manipulated during transactions. By linking the two, serializability plays a critical role in managing how attributes are accessed and updated, ensuring that operations on attributes are conflict-free and do not result in inconsistent states. This interplay between serializability and attribute management upholds the reliability and accuracy of database operations. Check out Attributes and The Different Types of Attributes in DBMS so that you can understand the work of attributes in DBMS.

In summary, serializability ensures that even when multiple processes are working with data at the same time, the final result is as if the operations were executed sequentially, one at a time, without any conflicts or errors.

FAQs

How does a DBMS ensure serializability?

A DBMS ensures serializability through concurrency control techniques like locking, timestamp ordering, and optimistic concurrency control. These methods allow simultaneous access to the database while ensuring that transactions are executed in a serializable order, maintaining consistency and correctness.

What is the difference between View Serializability and Conflict Serializability?

View serializability is a more relaxed form of serializability compared to conflict serializability. While view serializability only requires that transactions produce the same final result as a serial schedule, conflict serializability ensures that transactions do not conflict when accessing the same data. As a result, some schedules that are view serializable may not be conflict serializable.

How does Strong Serializability differ from Weak Serializability?

Strong serializability is a stricter form of serializability. In strong serializability, transactions must be executed in the same order as in the original schedule, ensuring the schedule matches a serial schedule exactly. On the other hand, weak serializability only requires that the schedule be conflict-equivalent to a serial schedule, meaning it doesn’t need to follow the exact sequence of the original transactions.

What is the role of the Precedence Graph in serializability testing?

The precedence graph is a tool used to test whether conflicts in a schedule can be serialized. In this graph, each transaction is represented as a node, and a directed edge is drawn from one node to another if an operation in the second transaction depends on an operation in the first. If the graph is acyclic (i.e., it has no loops), the schedule can be serialized, meaning the conflicts can be resolved.
